Introducing the Paddle Switch w/ Gang Box Install Hardware Kit by POWERTEC. This woodworking safety kit is intended to provide you with a paddle switch for your workshop and power tool needs. It features a simplistic, yet straightforward design that can be easily installed into deep gang boxes and standard gang boxes with extension ring. It features an easy-to-install mounting design and comes with color-coded start stop push buttons that possess an indented/bump style profile to signify the switch has been opened or closed. It’s the perfect safety feature for: Table Saws Drill Press Band Saw Sanders and Jointers Dust Collection Systems for Woodworking Single Phase Power Switch Specifications Dual Voltage: 110-Volt/220-Volt Rated current: 2 HP/35 Amps at 120-Volts : 3 HP/20 Amps at 230-Volts Approved By: UL, TUV, CSA, CE, ETL standards Included Hardware Kit Please Note: The hardware kit (screws and nuts) replaces the original M4 assembly hardware with compatible 6-32 screws when installing the POWERTEC 71007 and 71008 switches into deep gang boxes and standard gang boxes with extension ring or other installations requiring 6-32 screws. The POWERTEC 71646 hardware kit can be used to mount our 71054 and 71577 to a standard electrical box. Single Phase Switch/ Single Gang Installation Hardware Kit Contains: 1 x Single Phase Power Switch 2 x 1 in. L 6-32 Screws 2 x 6-32 Screw Nuts.

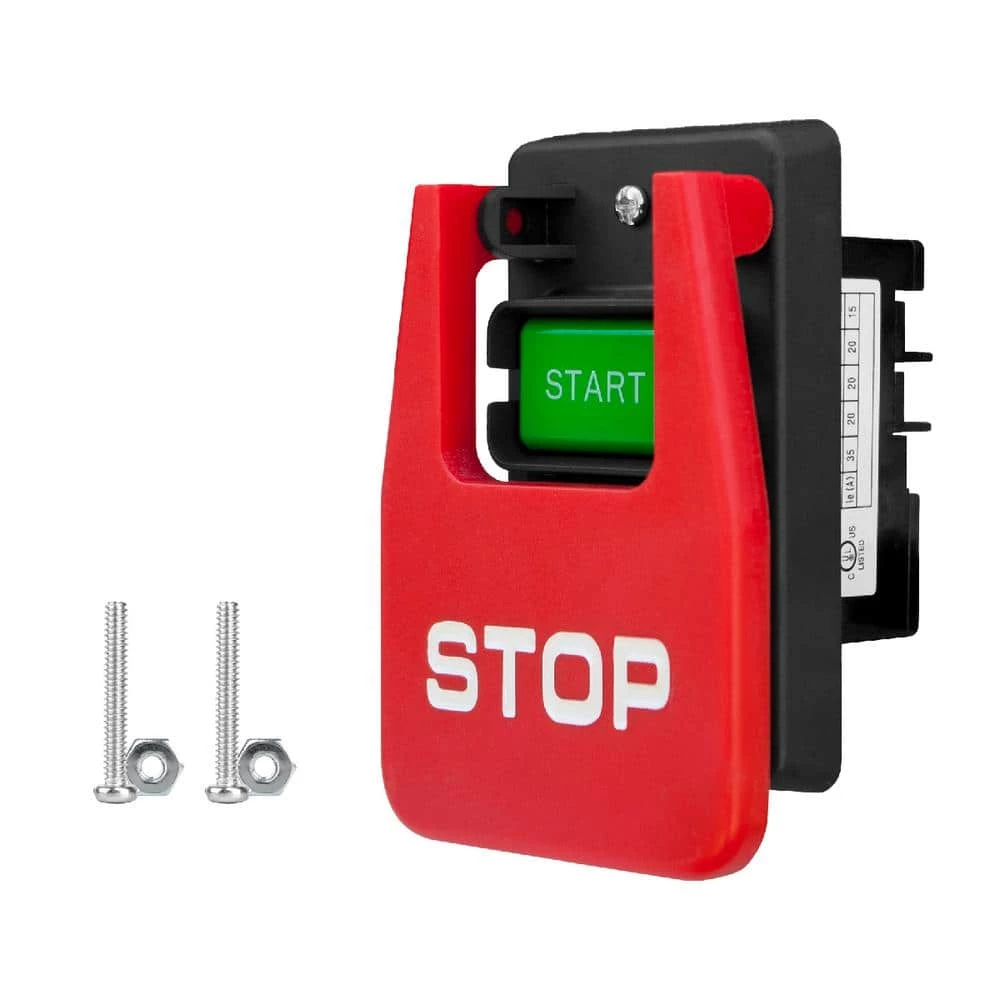

- Includes: (1) paddle switch (POWERTEC 71007) with single gang electrical box hardware installation kit (POWERTEC 71646)
- Kit function: provides you with a master or emergency power off safety switch box designed to safeguard your table saws, drill press, belt sanders, jointers, dust collectors and other woodworking machines

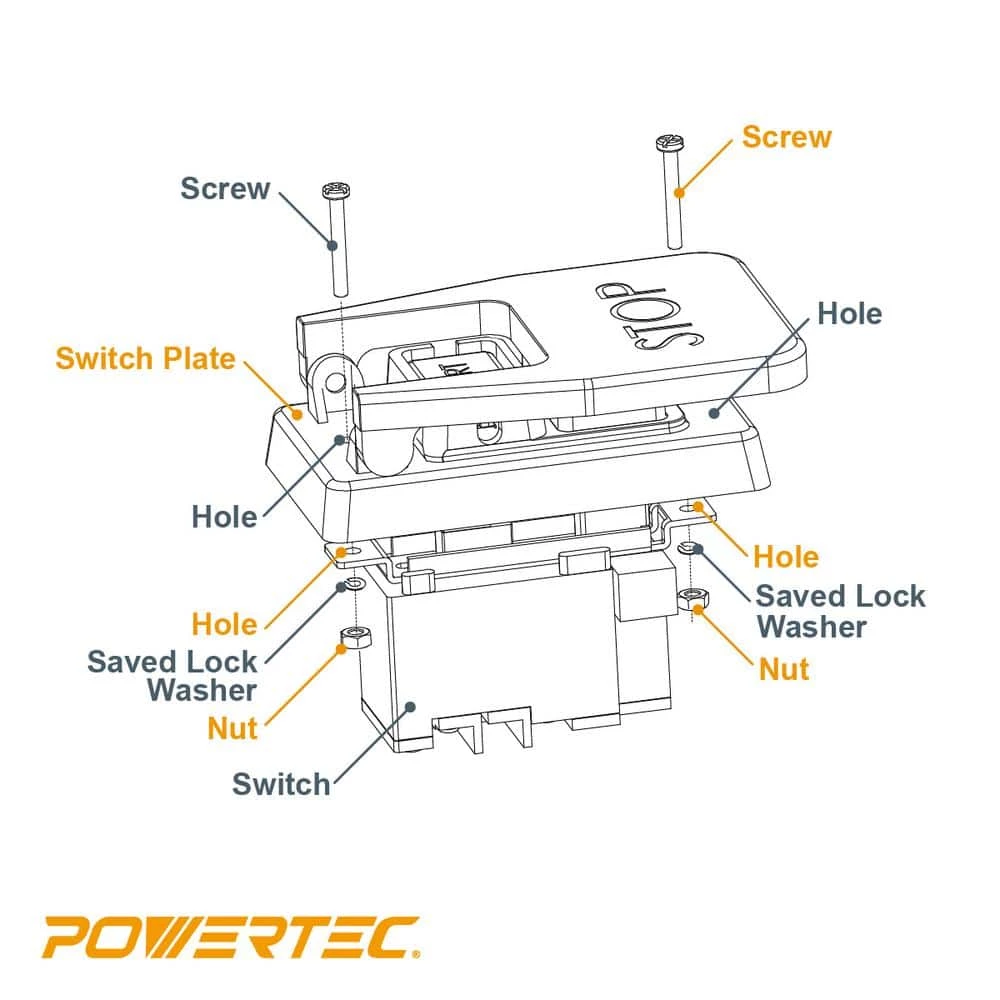

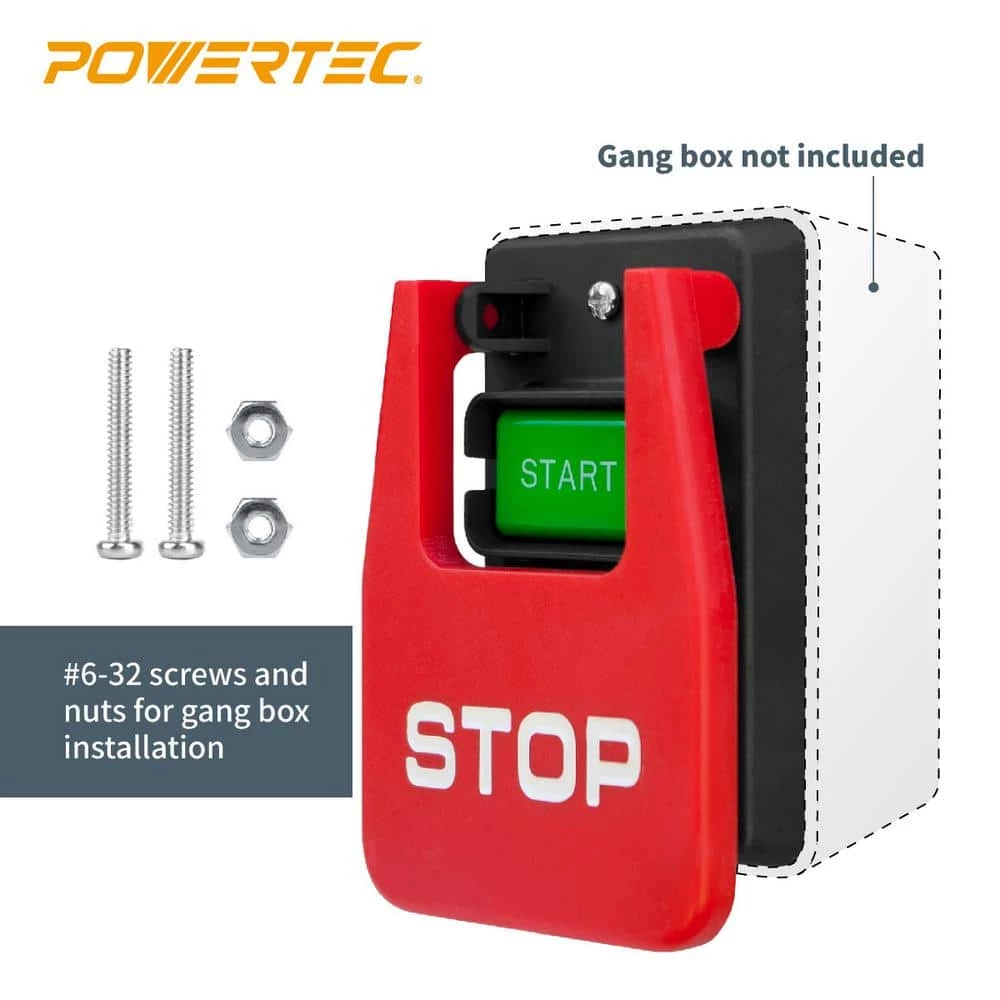

- Gang box hardware: includes (2) #6-32 screws and nuts, replaces the original M4 assembly hardware with compatible 6-32 screws when installing our 71007 and 71008 switches into deep gang boxes and standard gang boxes with extension ring or other installations requiring 6-32 screws, can also be used to mount the 71054 and 71577 to a standard electrical box

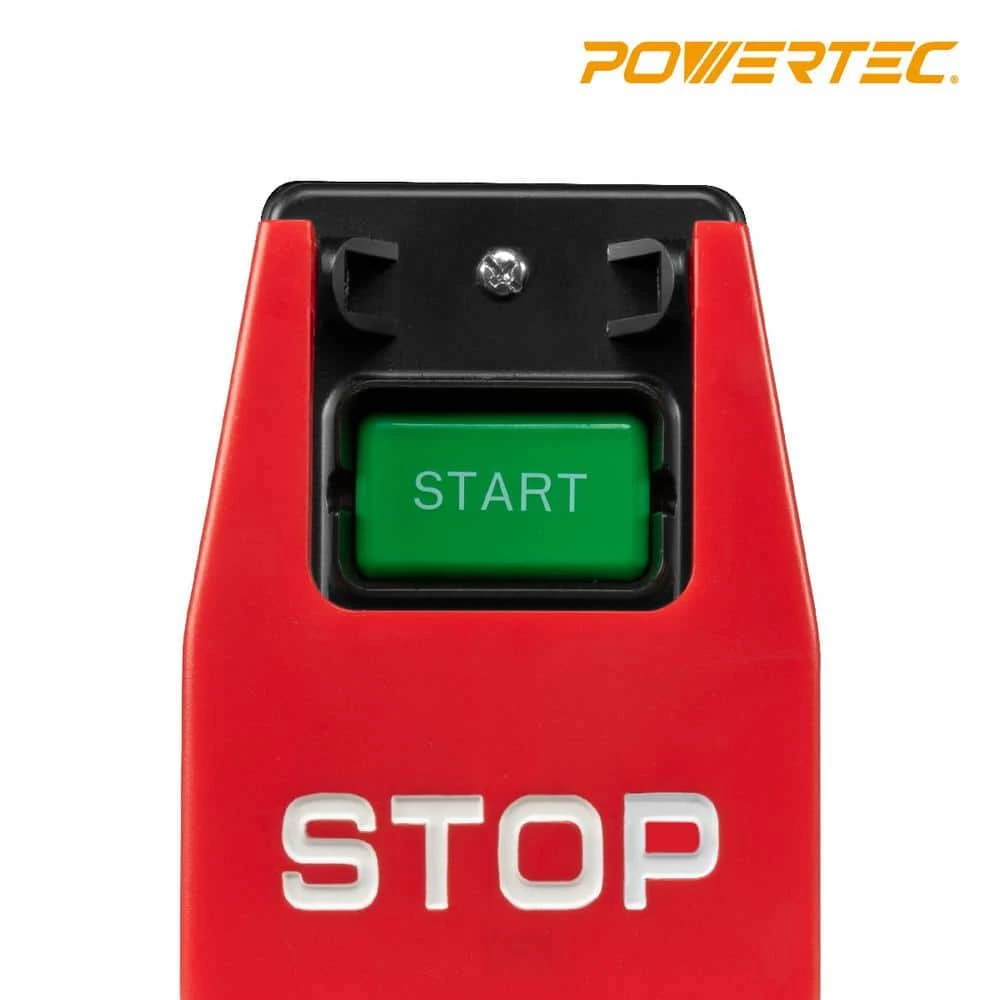

- Push-button power: switch features a simplistic, color-coded design with indented/bump style buttons to signify the switch has been opened or closed, it’s also extremely easy to install and use: Push the green start to turn your machine on, push the red stop paddle to utilize the panel as a master shut off switch
- Specifications: dual voltage: 110-Volt/220-Volt; single phase : rated current: 2 HP / 35 Amps at 120-Volt; 3 HP / 20 Amps at 230-Volt : Fits deep gang boxes and standard gang boxes with extension ring

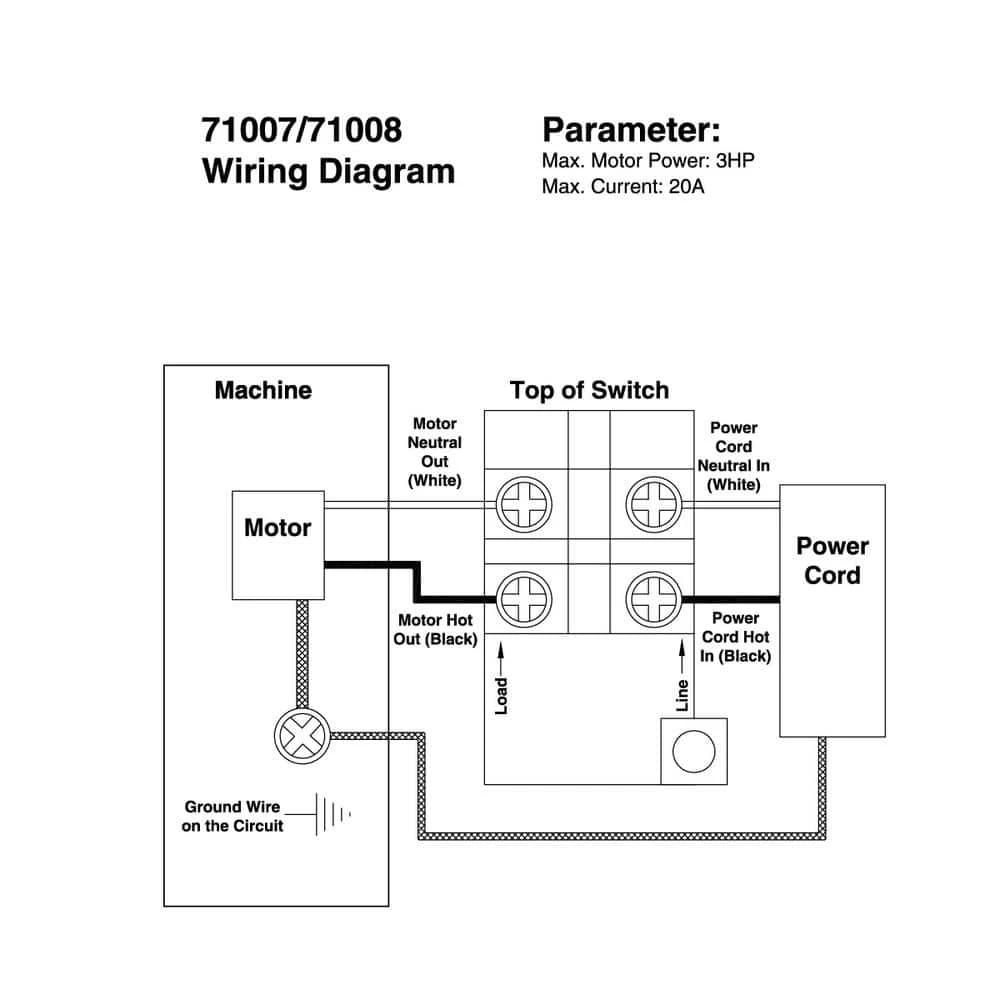

- Power switch has 2 throws so one can switch both hot and neutral or both phases of a 220-Volt line
