POWERTEC 200 lbs. Holding Capacity, Quick Release Vertical Toggle Clamp w Rubber Pressure Tip 12050,(16-PacK)

Introducing the Quick Release Vertical Toggle Clamp by POWERTEC. This clamp is an absolute must for any jig assembly, tool fixture or movable base. It features a vertical front mount push toggle design that provides an adjustable and secure hold, plus a quick release for many of your woodworking projects that require specific production clamping for drilling, welding or milling. This clamp gives you an efficient solution and allows you to focus on getting things done with precision and speed. Holding Capacity: 200 lbs., Premium Design: Featuring both strength and adjustability, its high grade steel and vinyl colored grip handle allows for an easy, comfortable and safe operation. Even with its lightweight design, the toggle clamp flaunts heavyweight features, including a handy toggle mechanism that allows for maximum clearance, along with a flange base and 90° angle grip that gives you maximum control. Its already superb construction is enhanced with a zinc plated coating for corrosion resistance and optimized durability. Common Uses: Table Saw, Jigs and Fixtures, Smoker Grills. Specification: Clamp base: 1 x 1-1/2, Mounting holes: 3/16 spaced apart 1/2 x 1-1/16, Clamp reach from front of clamp base: 1, Bolt length, including rubber foot: 1-7/8, Clamp foot adjustable range from bottom of clamp arm: 3/4 – 1-1/4, Clamp height (including handle when clamped): 4-1/2, Total length when clamped: 2-1/2.

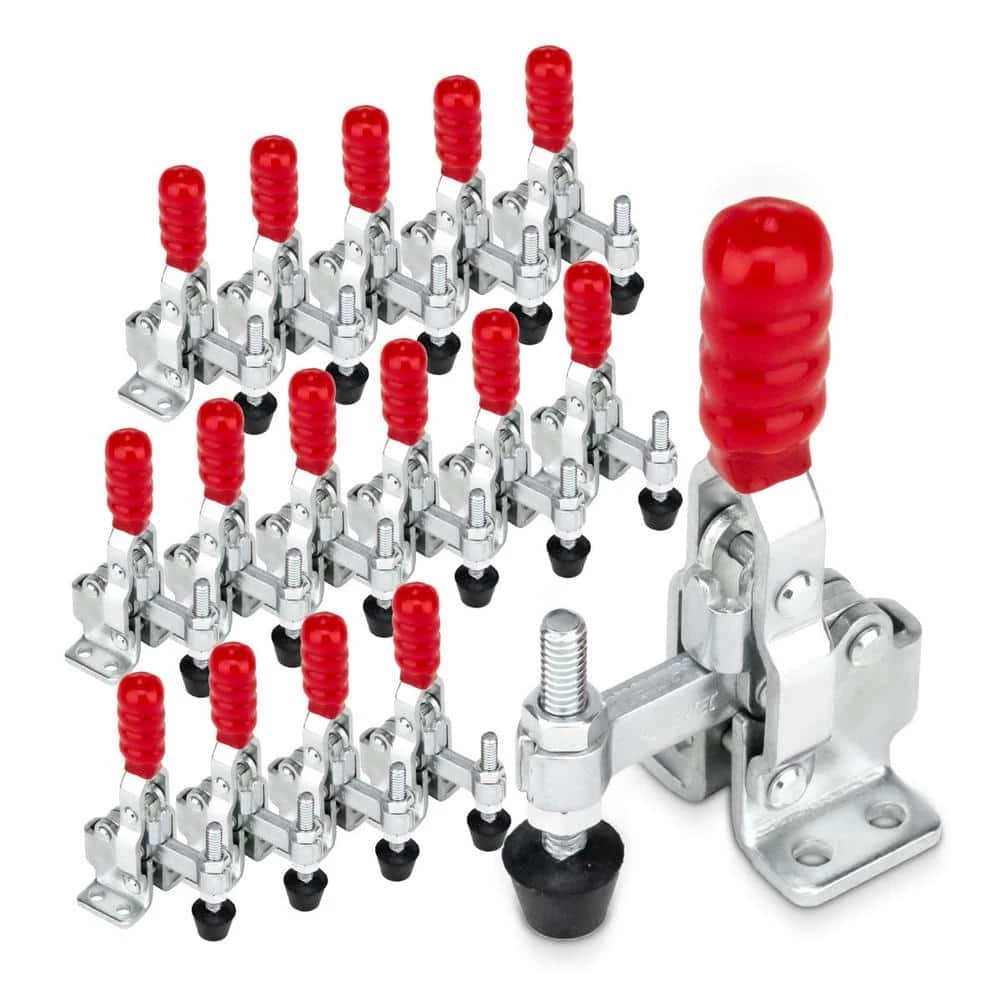

• Includes: 16 vertical handle toggle clamp 12050
• Function: an essential woodworking hand tool addition to your jig assembly, delivering dependable and secure vertical hold down clamp action for your work pieces, jigs and fixtures
• Design: this heavy-duty vertical toggle clamp is constructed from cold-rolled carbon steel, possessing a low profile design, a flanged base and colored vinyl grip for easy identification
• Holding capacity: vertical clamp can hold up to 200 lbs.

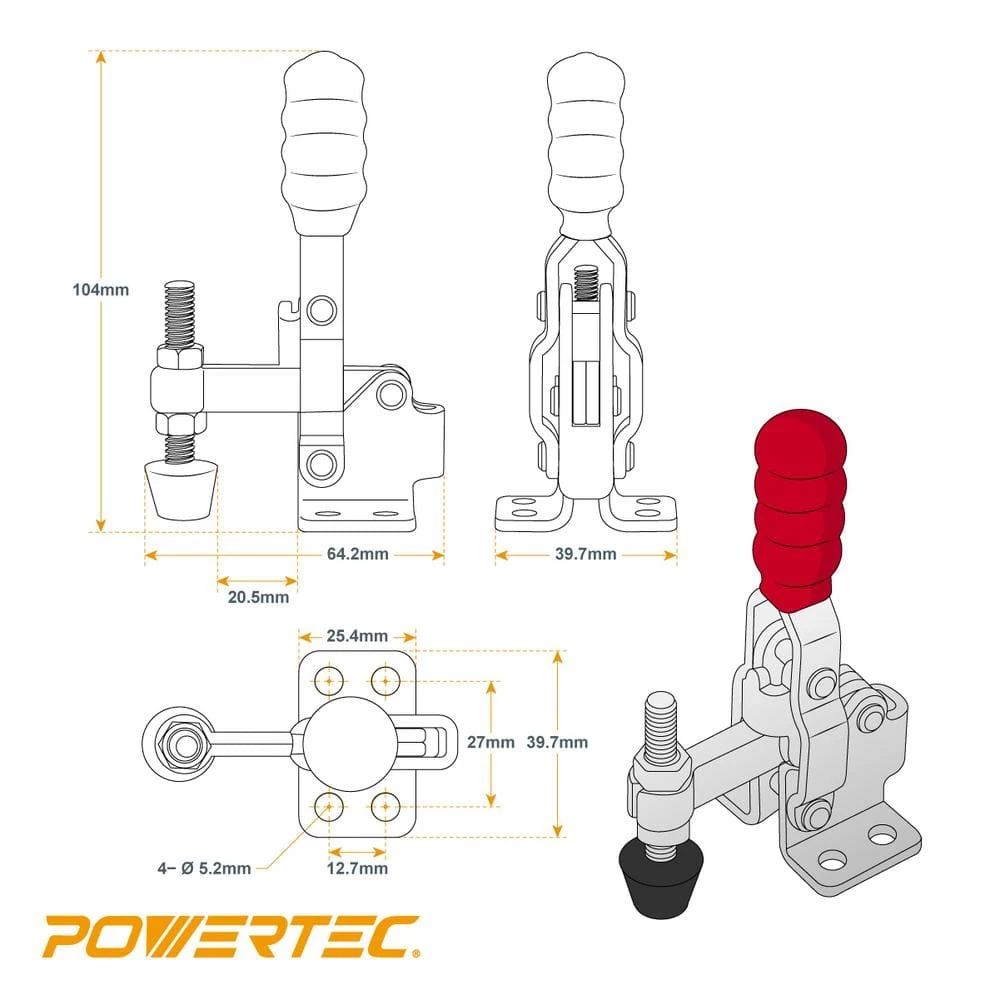

• Clamp specs: 1 in. x 1-1/2 in. mounting holes: 3/16 in. spaced apart 1/2 in. x 1-1/16 in. bolt length, including rubber foot: 1-7/8 in.
• Clamp foot adjustable range from bottom of clamp arm: 3/4 in. to 1-1/4 in. clamp height, including handle when clamped: 4-1/2 in.
