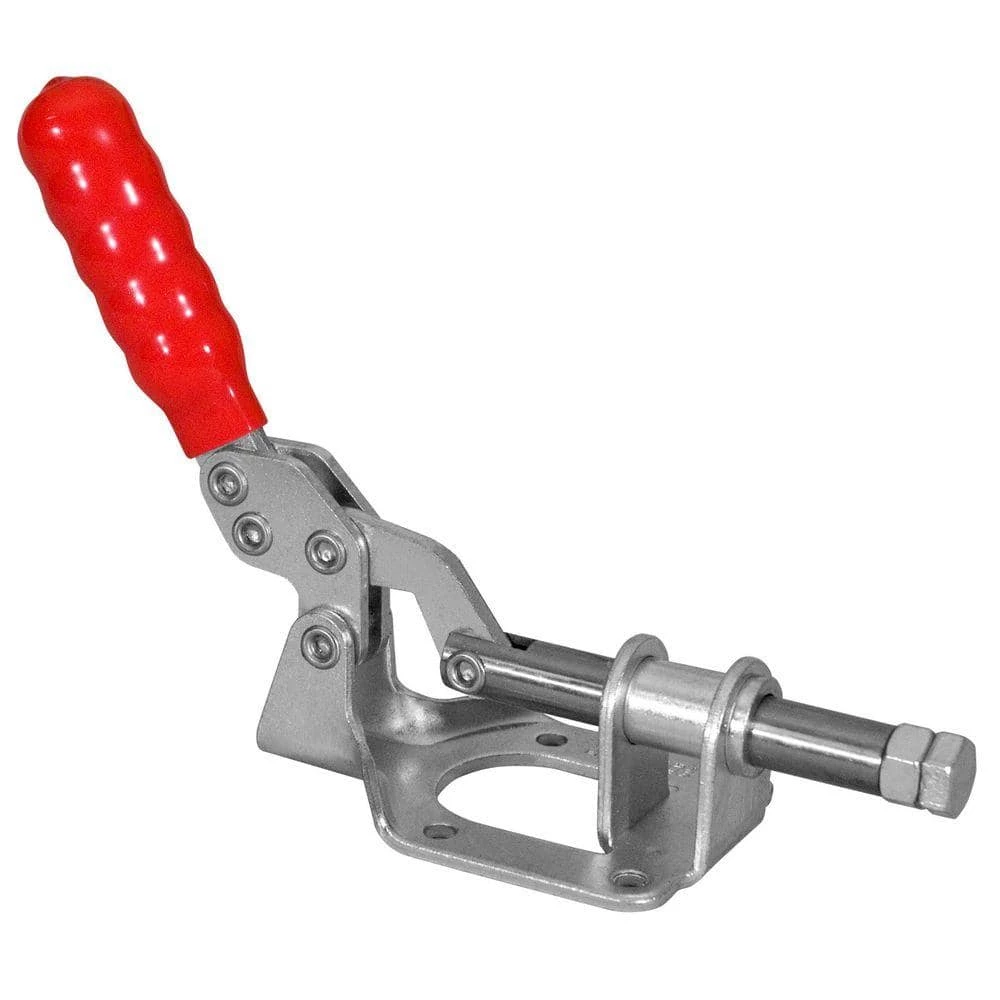

POWERTEC 300 lb. 302F Push/Pull Quick-Release Toggle Clamp

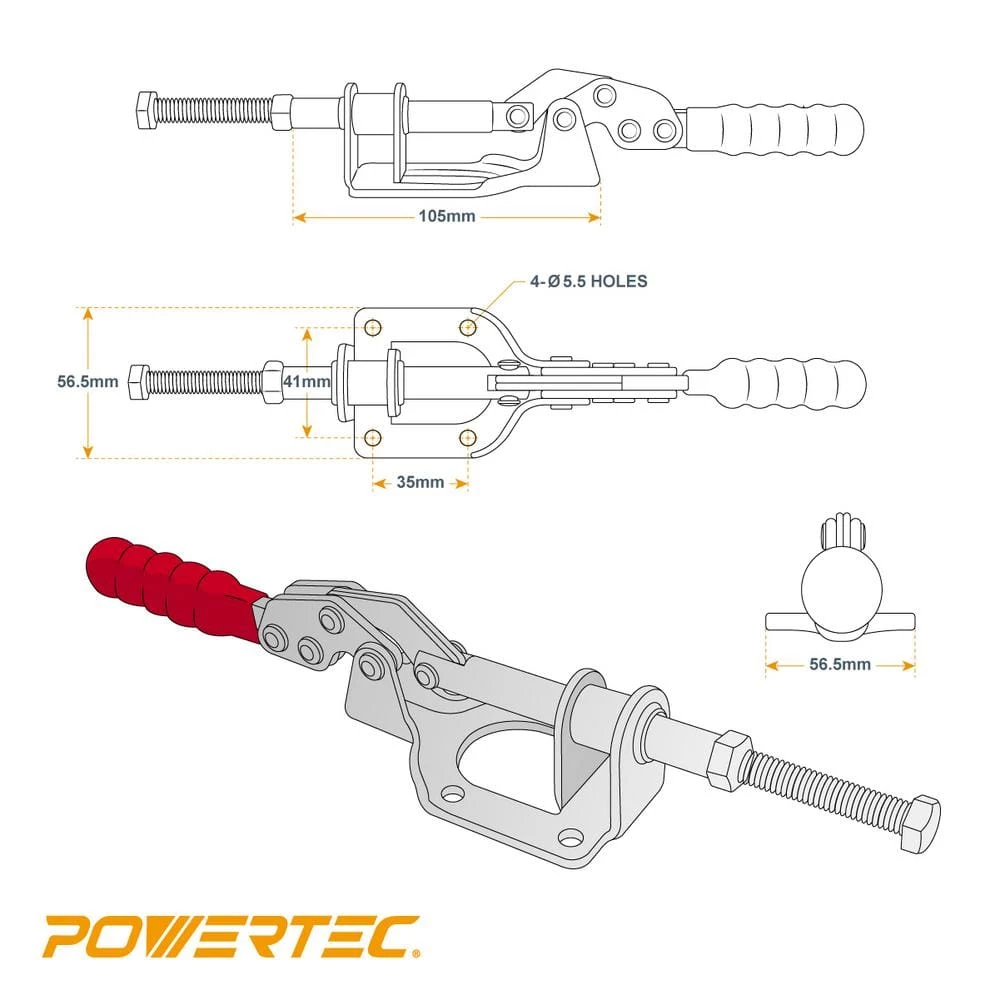

? Introducing the Push Pull Quick Release Toggle Clamp by POWERTEC? This hand tool clamp is an absolute must for any jig, tool fixture, movable base or woodworking assembly. It features a unique push/pull action that provides a secure hold for your workpiece in a vertical position and serves as a convenient solution to your clamping requirements. Whether you’re a professional or DIY enthusiast, you’ll find its sturdy design, quick release and heavy duty clamping action to be a valuable asset to your day-to-day applications. ? Holding Capacity: 300 lbs?Premium Design.Our Toggle Clamps are designed with a heavy duty, cold-rolled steel construction for long-term durability. Still, the steel is lightweight, and enhanced with a protective zinc plated coating for anti-rust and corrosion resistant properties. The toggle clamp’s straight line bar and smooth clamping stroke allows for optimal holding pressure without slippage. For optimal comfort, they possess red colored vinyl grips that allow for a smooth and safe operation. ? Specs? Clamp base: 3-1/2″ x 2-3/16″ : Mounting holes: 3/16″ spaced 1-3/8″ x 1- 1/8″ apart : Push rod range (without clamp bolt) from end of base to end of push rod: 11/16″ – 2″ : Plunger bolt thread size: 5/16-18 by 1-1/4″ long : Clamp height, (including handle) when clamped: 3-1/4″ : Total length when clamped (without clamp bolt): 5-9/16″

• INCLUDES: (1) Push Pull Quick Release Toggle Clamp with adjustable 5/16″-18 Nut and bolt
• FUNCTION: An essential straight line toggle clamp that allows you to hold your workpiece in a vertical position using a push pull type to secure your jigs, fixtures, clamping tables, and other woodworking projects
• BUILD: Made with heavy duty, highly durable and shock resistant cold-rolled carbon steel, enhanced with a protective corrosion resistant zinc plated coating, and paired with a red ergonomically designed anti-slip vinyl hand grip for optimal comfort and control
• DESIGN: Features an impressive holding capacity of 300lbs with its flanged clamp base, a dual position handle lock and a removable bolt on the end of the push rod

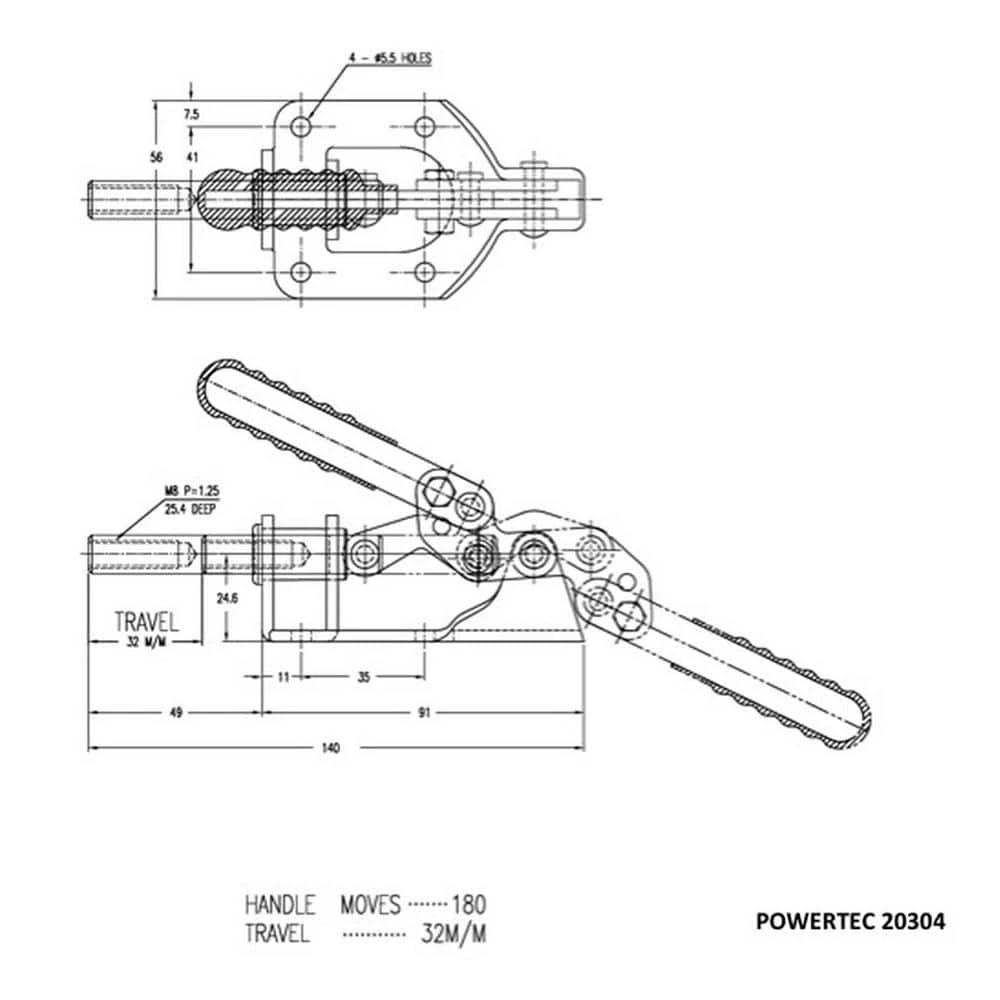

• SPECS: Hand tool clamp dimensions 160 x 55 x 85mm/6.3″ x 2.2″ x 3.3″ : Screw Thread Size 8 x 29mmm/0.3″ x 1.1″ : Plunger Stroke 32mm/ 1.3″
• Ideal when work piece must be held by horizontal clamping action
• Commonly Used Applications:Welding Table.Clamping Tables.Woodworking Jigs and Fixtures.Securing Sheet Metal/ Circuit Boards
