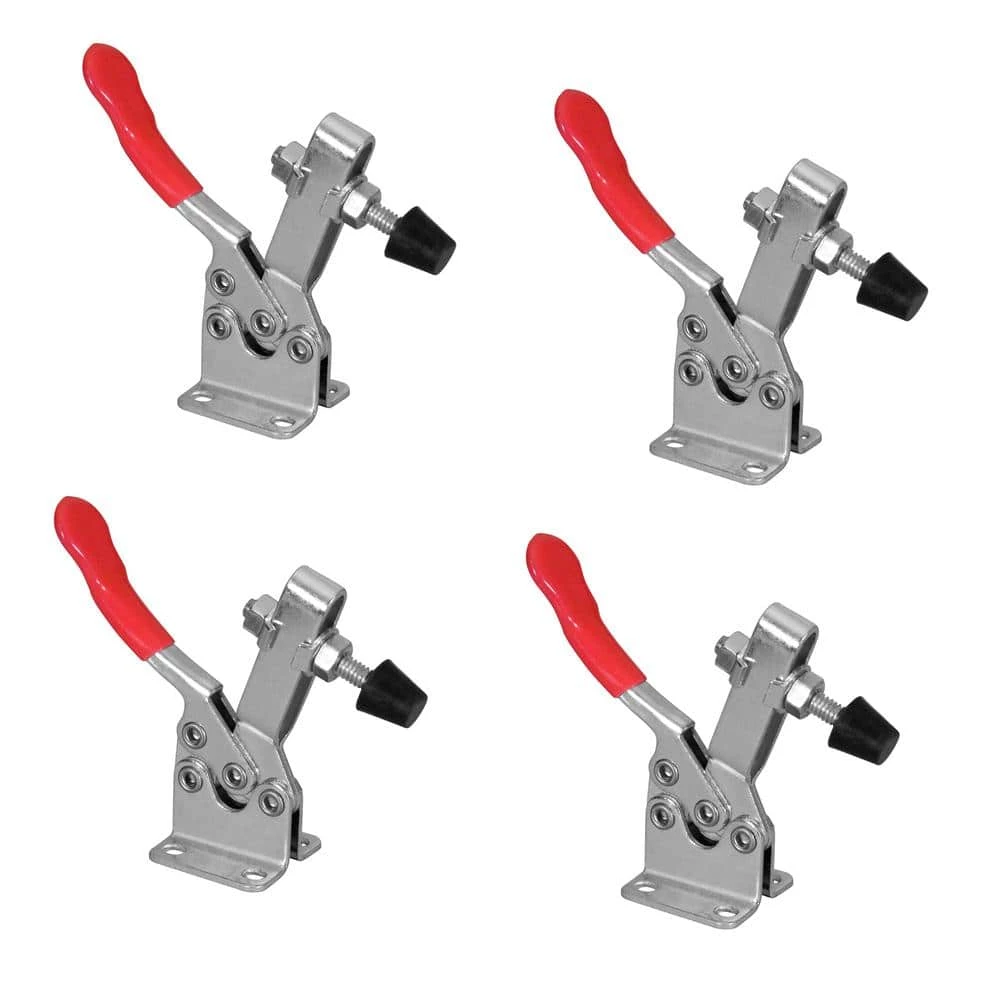

The POWERTEC Horizontal Quick-Release Toggle Clamp, is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that wont slip. Features a low height design and mechanism to allow for maximum clearance. Vinyl colored grip for easy identification and comfort.
- Includes: (4) horizontal quick release Toggle Clamp
- Function: an essential hand tool and addition to your jig assembly, delivering a dependable and secure non-slip grip on your work pieces, jigs and fixtures
- Design: a hold down Toggle Clamp constructed from cold-rolled carbon steel, possessing a low height design, a pressure adapter for easy depth adjustment and maximum clearance
- Holding capacity: Toggle Clamp can hold up to 300 lbs., complete with adjustable rubber pressure tips
- Clamp specs: base 1-7/16″ x 1-5/16″: mounting slots 1/4″ x 3/16″ spaced 1″ x 7/8″ : bolt length, including rubber foot: 1-7/8″
- Clamp reach range, from front of clamp base: 5/8 in. to 2-1/8 in. bolt length, including rubber foot: 1-7/8 in. clamp foot adjustable range from bottom of clamp arm: 7/8 in. to 1-1/8 in.
- Clamp height when clamped: 1-1/2 in. total length, including handle, when clamped: 5 in. to 7/8 in.
