POWERTEC 500 lbs. Horizontal Quick-Release Toggle Clamp (4-Pack)

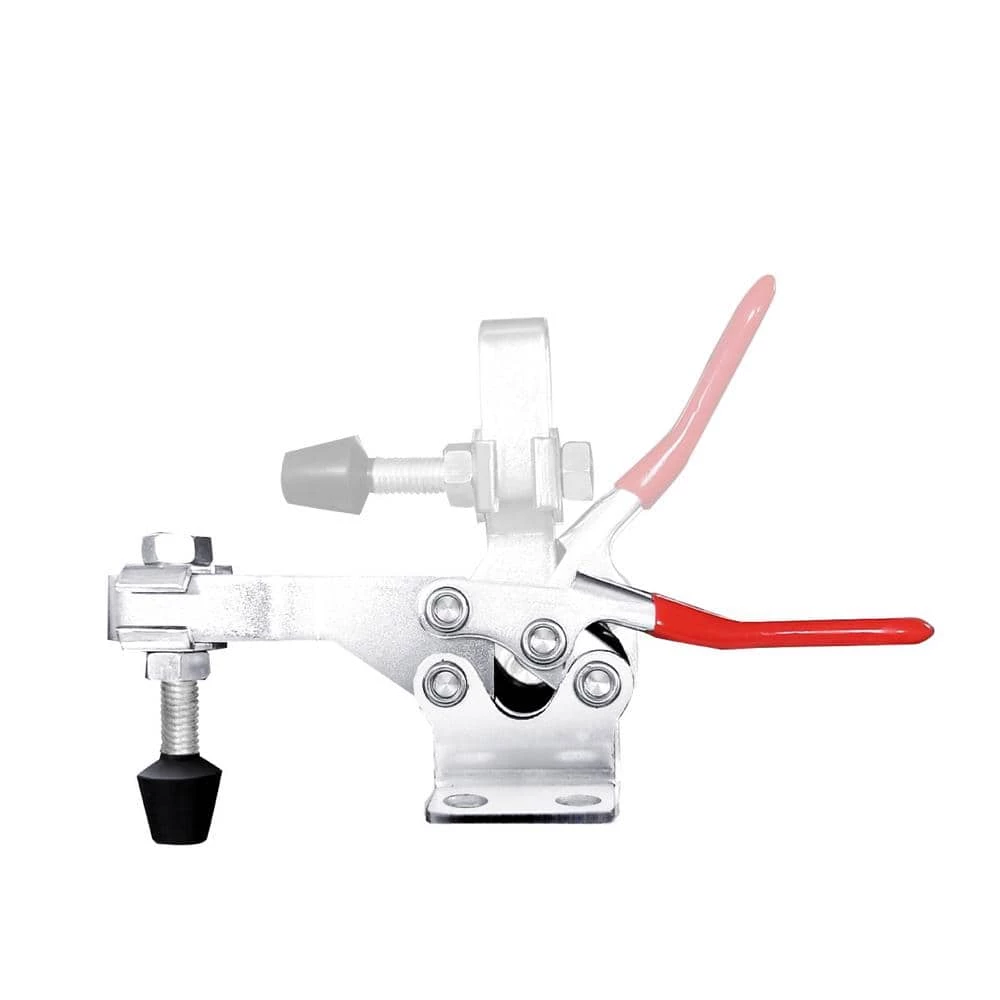

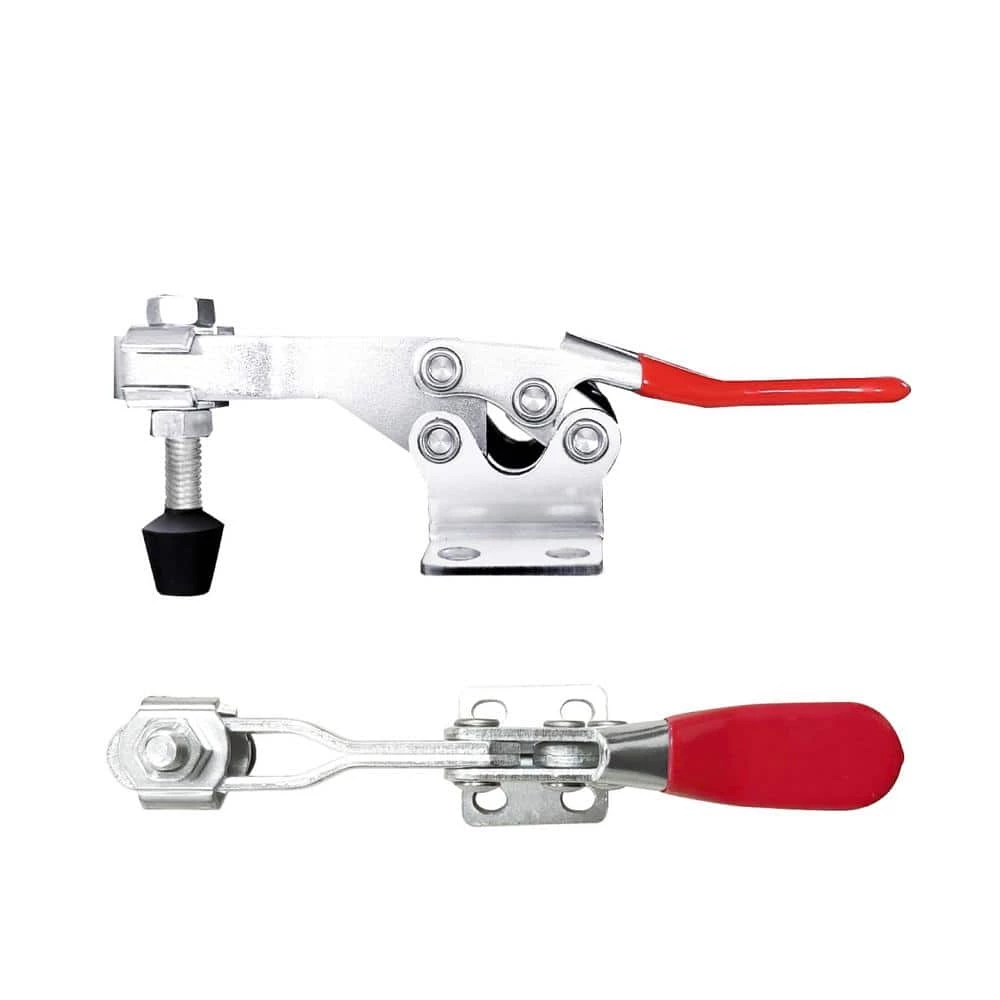

The ?POWERTEC Horizontal Quick-Release Toggle Clamp? is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that wont slip. Features a low height design and mechanism to allow for maximum clearance. Vinyl colored grip for easy identification and comfort. Zinc-plated coating for corrosion resistance. Retracted clamp will allow for vertical removal of clamped item. This versatile and handy clamp makes woodworking perfection a breeze. Small tool, big help. ?Clamp Base? 1-3/8 in. x 1-1/2 in. ?Mounting Slots? 1/4 in. x 3/8 in. spaced 7/8 in. x 7/8 in. Clamp reach range, from front of clamp base: 1-1/8 in. – 2-5/8 in. ?Bolt length? including rubber foot: 2-1/2 in. Clamp foot adjustable range from bottom of clamp arm: 1-1/8 in. – 1-3/4 in., Clamp height when clamped: 2. Total length, including handle, when clamped: 7 in. Cold-rolled carbon steel with zinc plated coating for corrosion resistance.

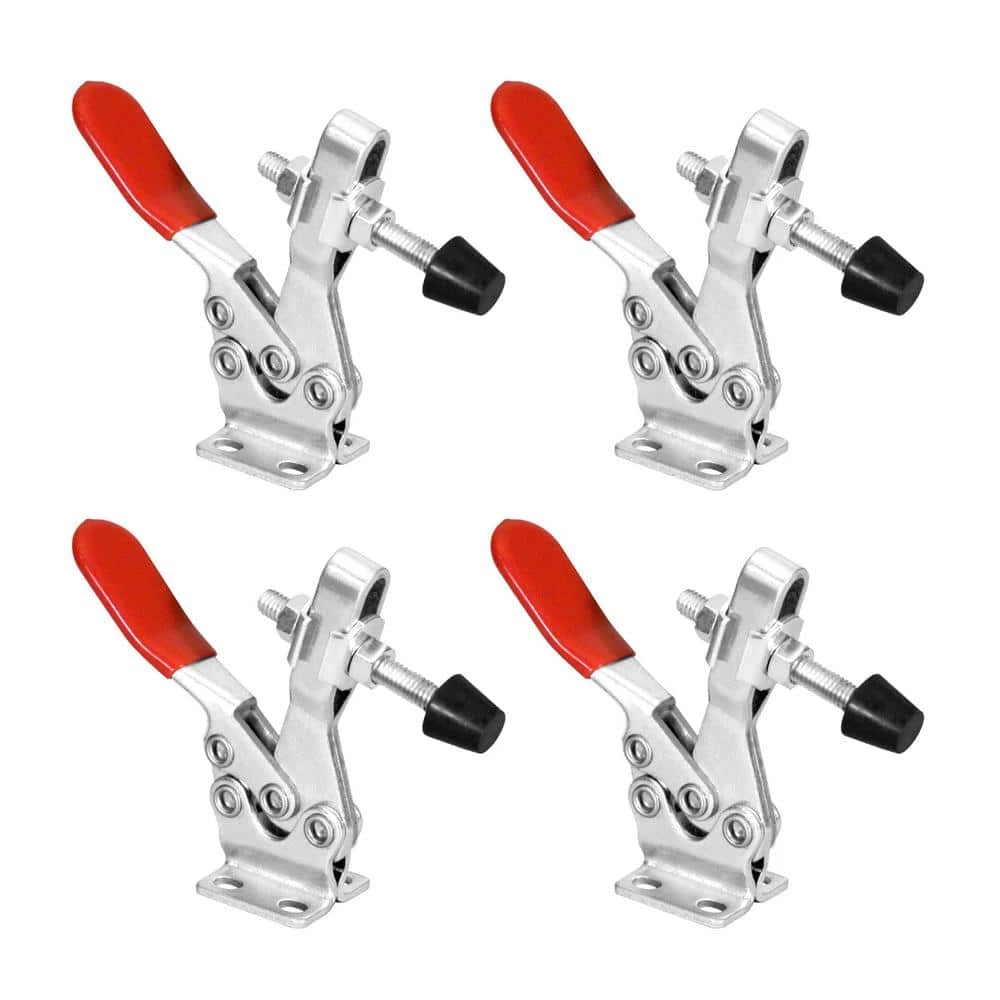

• Includes: (4) horizontal quick release Toggle Clamp
• Function: an essential hand tool and addition to your jig assembly, delivering a dependable and secure non-slip grip on your work pieces, jigs and fixtures
• Design: a hold down Toggle Clamp constructed from cold-rolled carbon steel, possessing a low height design, a pressure adapter for easy depth adjustment and maximum clearance
• Holding capacity: Toggle Clamp can hold up to 500 lbs.

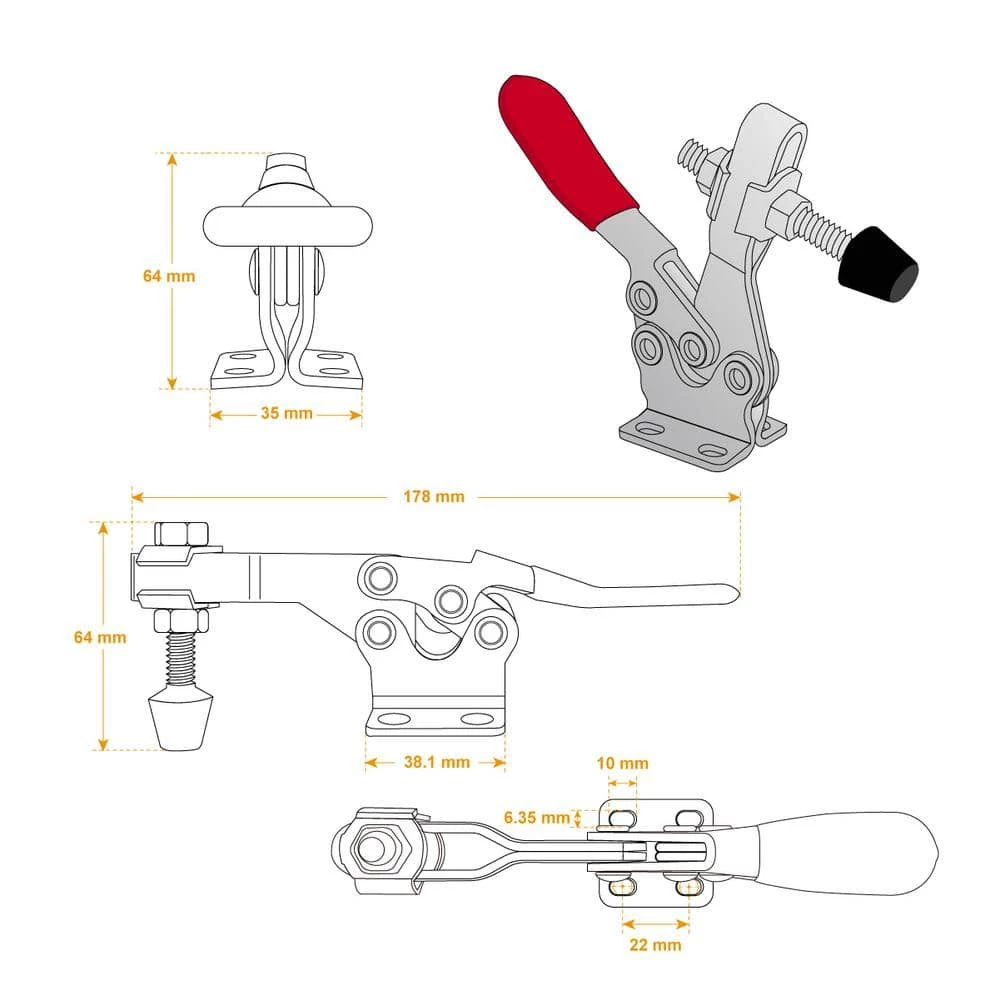

• Clamp specs: base 1-3/8″ x 1-1/2″ : Mounting slots 1/4″ x 3/8″ spaced 7/8″ x 7/8″ : bolt length, including rubber foot: 2-1/2″
• Mechanism allows maximum clearance
• Complete with adjustable rubber pressure tips
